Description
Features:

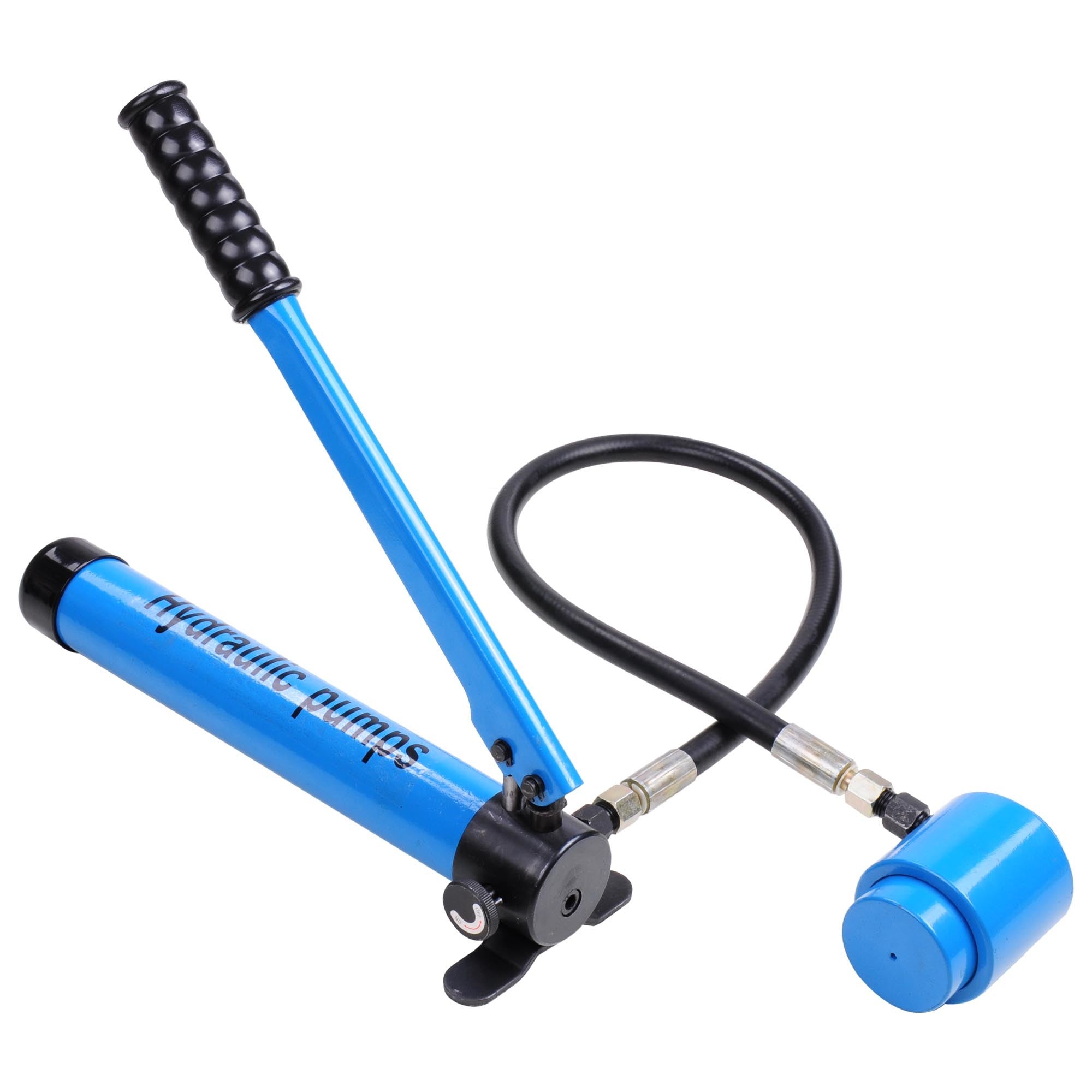

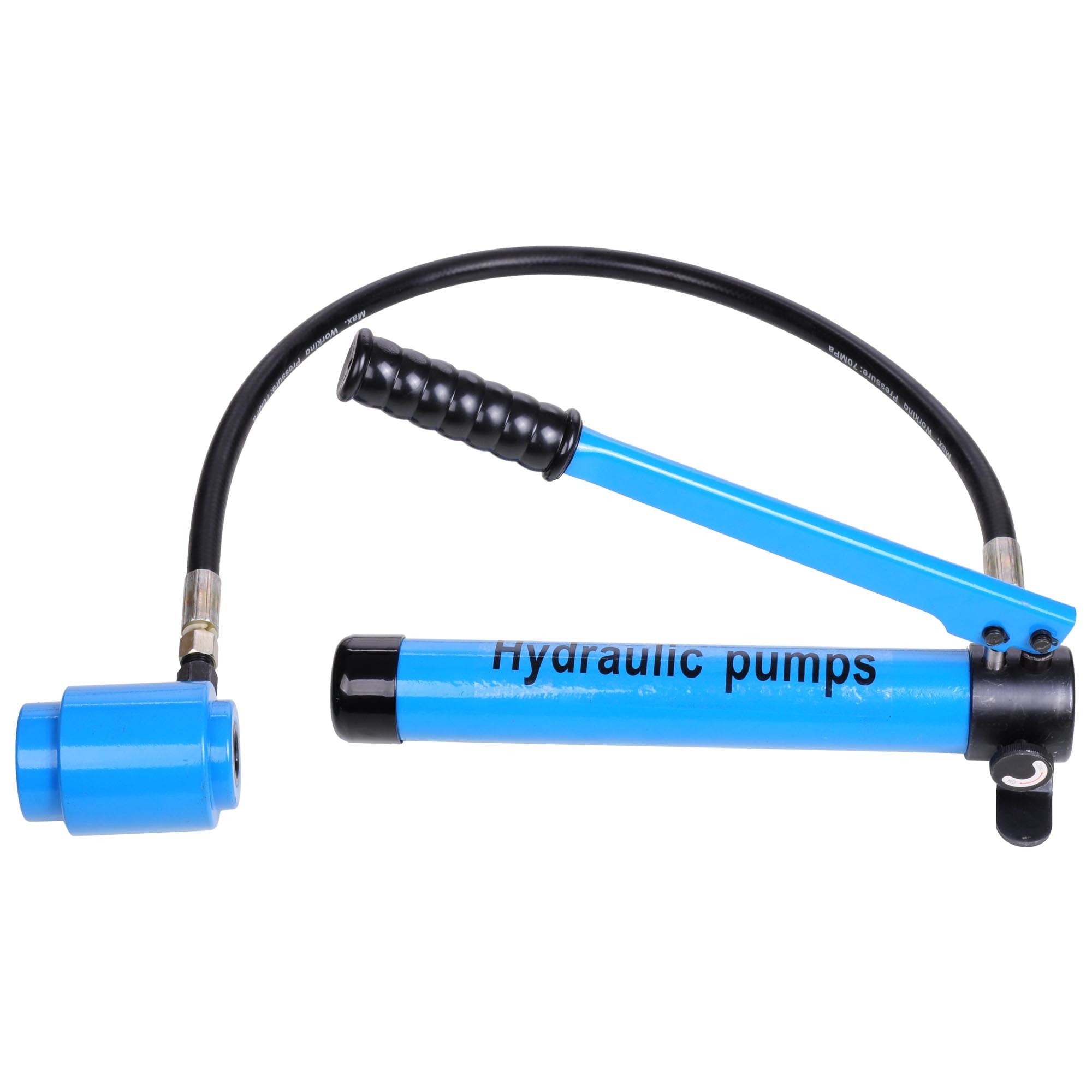

- Complete Punch Tools - Hydraulic punch tool kit features 1pc 9-ton pump, 2pcs draw studs, 1pc piston shaft, 2pcs spacers and 6 sets of interchangeable dies & punches fitting for 1/2", 3/4", 1", 1 1/4", 1 1/2" and 2" conduit sizes, can drill different sizes holes on stainless steel, aluminum, steel, plastic, etc; 1/8' (11 gauge) max punching thickness for iron and 1/16' (16 gauge) for stainless steel, perfect to be used for different drilling projects
- Efficient Hydraulic Design - Hydraulic mechanism of the pump produces a strong force of 9T for providing great punching accuracy and fast punching speed which is 10 times much faster than common wrenches, ideal for improving working efficiency; rotary 'on/off' knob on the pump for quick releasing pressure, adding more safety
- Sturdy Steel Construction - 40Cr steel dies and 45# steel pump body for ensuring high strength, sturdiness and durability, stable construction is suitable for heavy-duty and frequent punching works
- Convenient Operation - Rotatable "on/off" knob on the pump for quick releasing pressure after drilling holes and safety valve for releasing pressure automatically when the pressure reaches the max value, perfect for adding more safety; anti-skid plastic grip at the end of the handle for easy and comfortable pressing
- Portable & Wide Application -Blow-molded plastic case with handle for providing portability and convenient storage and keeping all accessories in place; widely used on installing and repairing wire pipeline, signal lamp and instrument on construction sites, metallurgy, petrol, electronics, electrical appliance, chemical industry, ship and machinery, etc.
Specification:
- Pump Dimension(LxWxH): 12 5/8" x 4 5/16" x 4 5/16" (32 x 11 x 11 cm)
- Plastic Case Dimension(LxWxH): 16 15/16" x 9 7/16" x 4 3/4" (43 x 24 x 12 cm)
- Draw Stud Sizes(LxDia.): 3 1/8" x 5/16" (7.9 x 0.8 cm), 3 3/16" x 5/16" (8.1 x 0.8 cm)
- 6 Dies & Punches Sizes: 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
- Drilling Hole Size: 7/8" (22.5mm), 1 1/8" (28.3mm), 1 3/8" (34.6mm), 1 11/16" (43.2mm), 1 15/16" (49.6mm), 2 7/16" (61.5mm)
- Max Pressure: 9 ton
- Material: 45# Steel, 40Cr Steel
- Max Thickness for Iron: 1/8" (11 gauge)
- Max Thickness for Stainless Steel: 1/16" (16 gauge)
- Net Weight: 20.9 Lbs (9.5 kg)

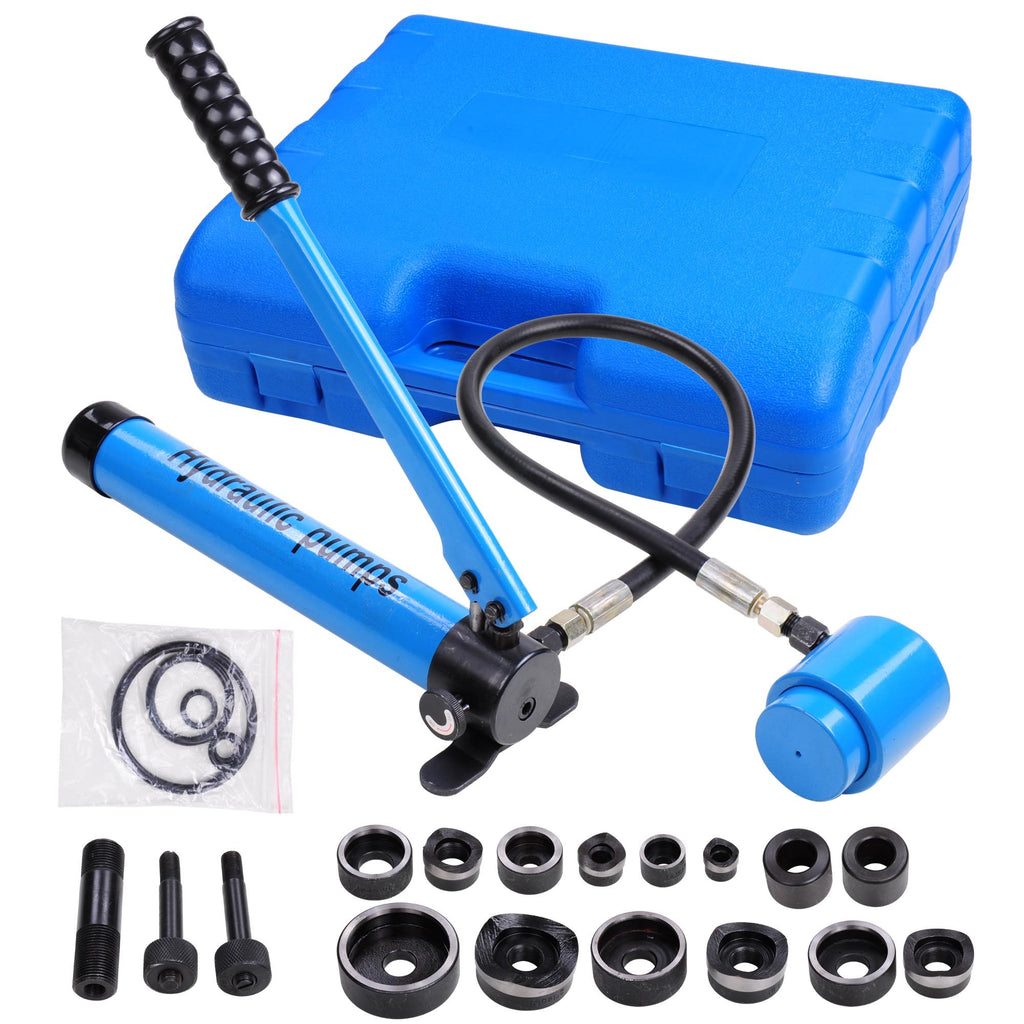

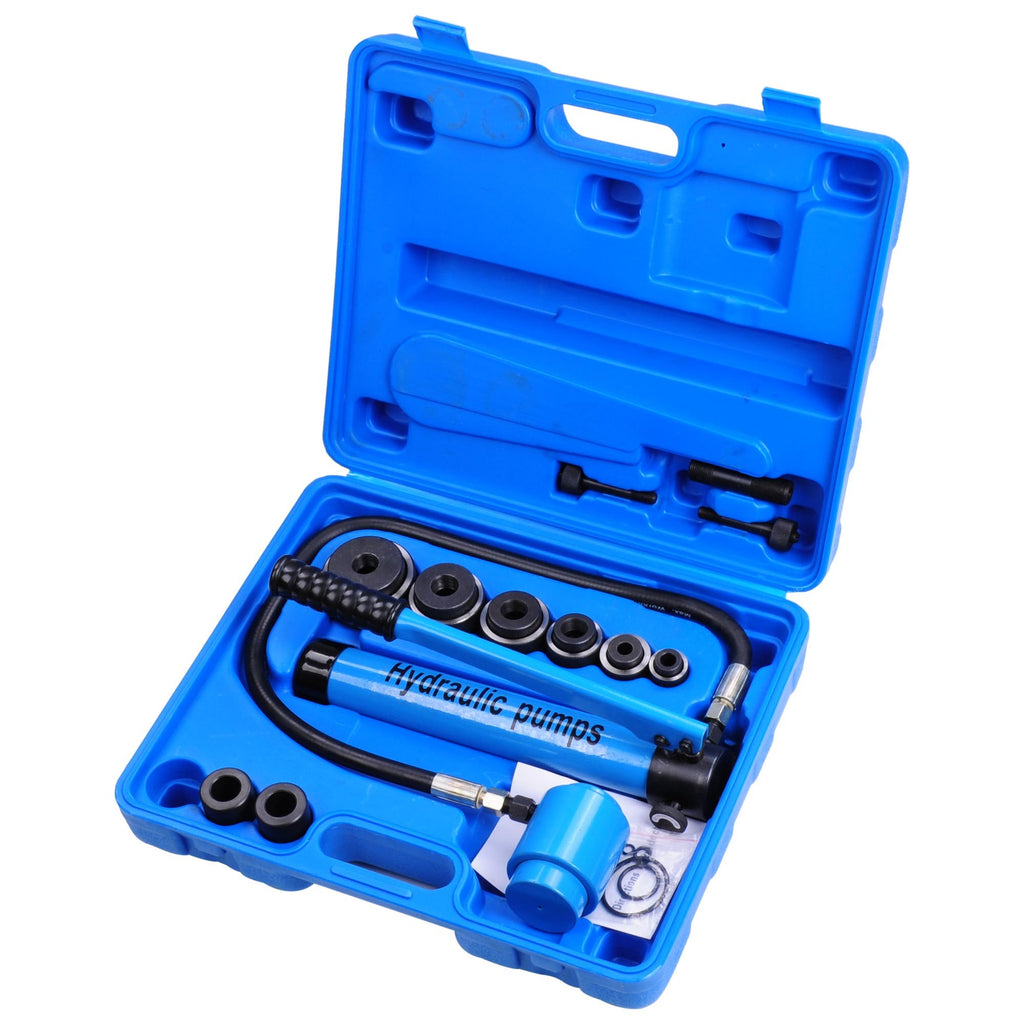

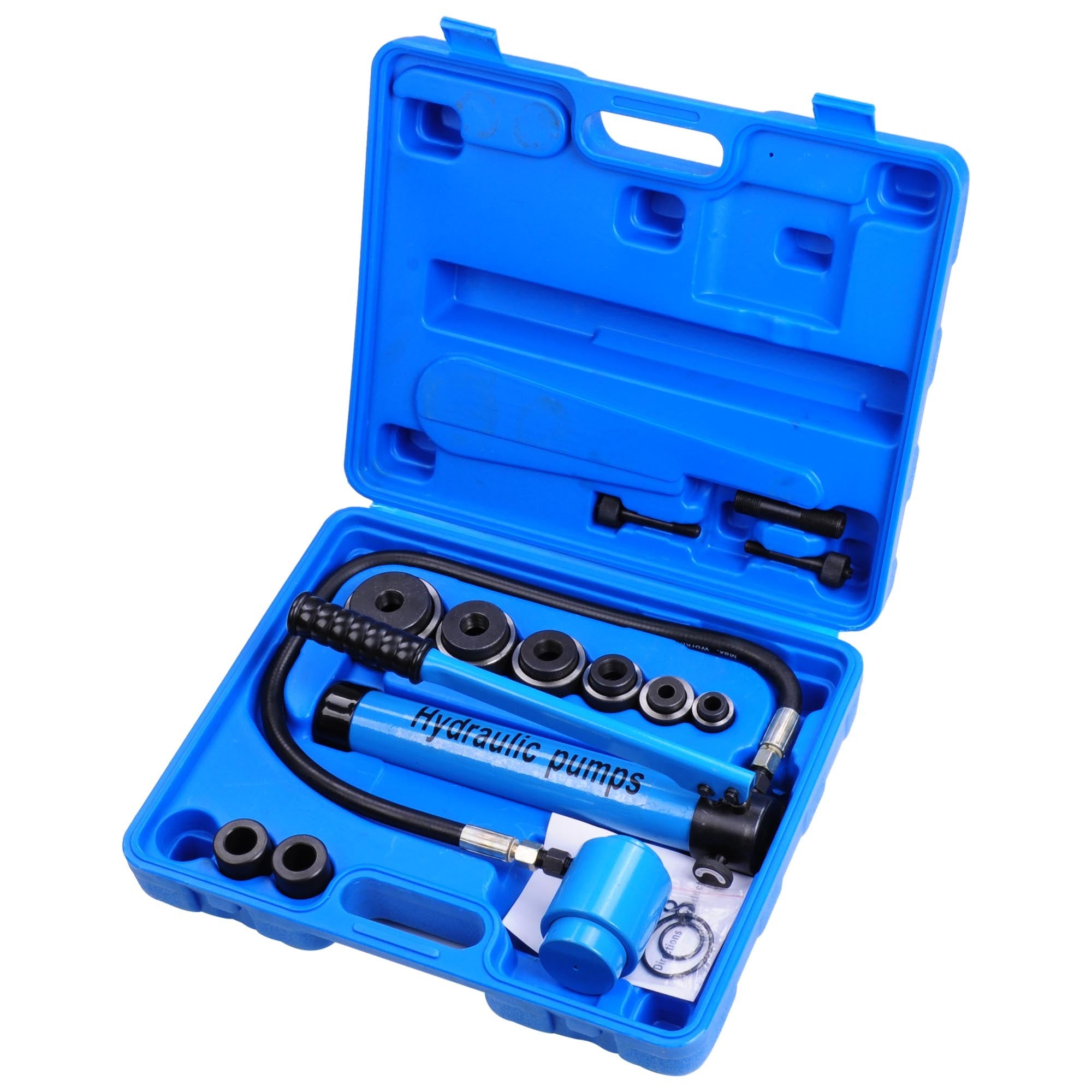

Package Content:
- 1x 9-Ton Hydraulic Punch Driver
- 6 Sets of Dies & Punches
- 2x Draw Studs
- 1x Adapter
- 1x Piston Shaft
- 2x Spacers
- 1x Plastic Carrying Case
- 1x Manual
