Highlights:
1.Support 2*S/S2 Tuner input or 4 ASI input ports and 1 IP
2.Support MISO and SISO
3.High performance output: MER>43dB, shoulder level>56dB
4.Support LCD display and keyboard
5.Support BISS descrambling

Details:

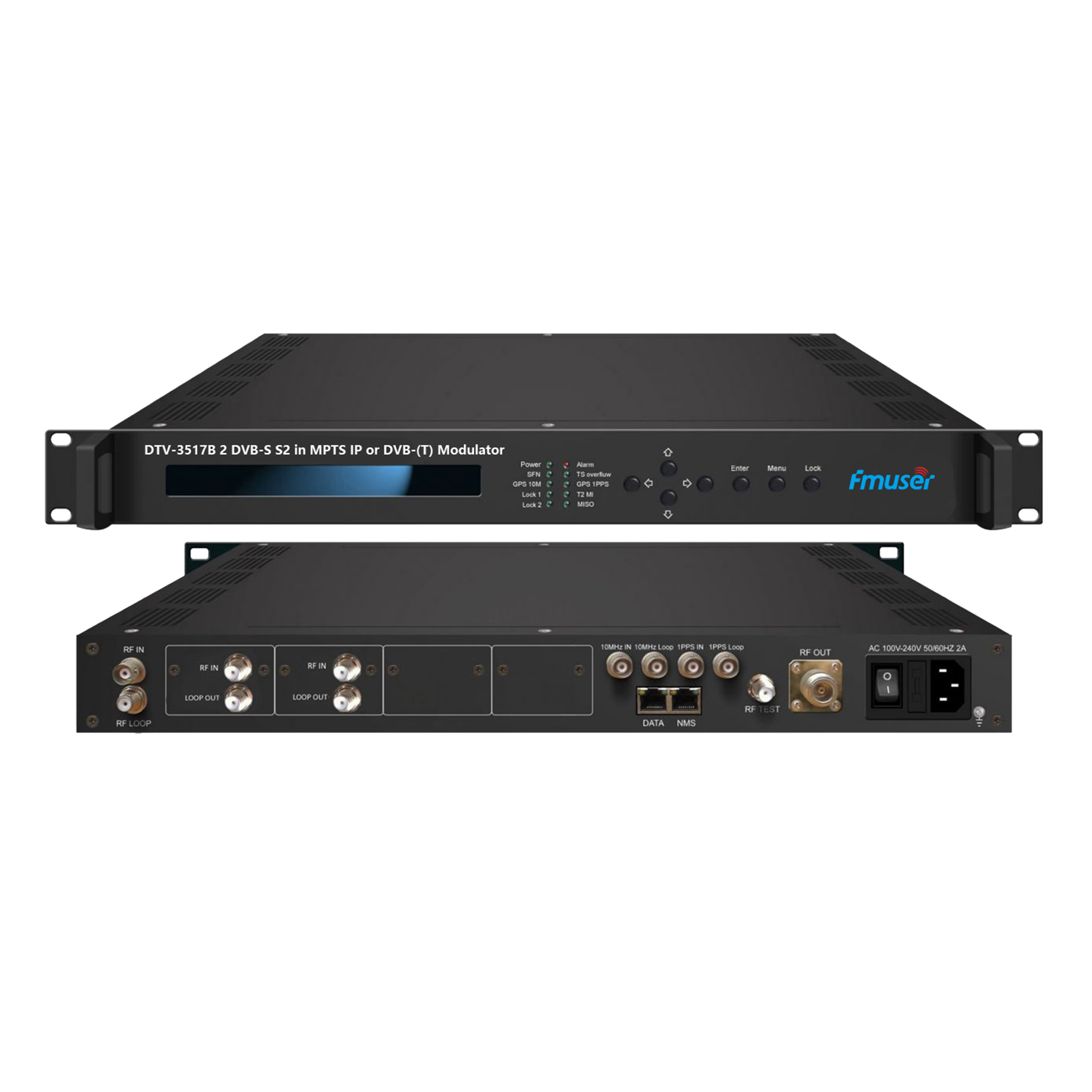

FMUSER DTV-3517/-B 2/4 ASI/DVB-S/S2 1 IP(UDP) in DVB-T/T2 RF/IF Modulator







Overview:

FMUSER DTV-3517B DVB-(T) modulator is an all-in-one device that integrates demodulation; trans-mux; and modulation in one case to convert signals into DVB-(T) RF output and IP output over UDP. The modulator is equipped with 2 DVB-S/S2 tuner inputs; one GPS 10MHz input port; and one 1PPS input port. The output modulated signals are designed to be received by TVs; STBs; and other related devices. The modulator also supports adaptive linear and nonlinear digital pre-distortion and BISS function to descramble programs from the tuner input.



FMUSER DTV-3517 DVB-(T) modulator is a new product that fully complies with the EN300 744 standard. The modulator features advanced modulating technology that effectively makes use of ground spectrum resources and provides reliable signals for fixed; mobile; and portable devices. Compared with DVB-T; the channel capacity is increased by 30% under the similar carrier to noise ratio (CNR) threshold.







Features:

FMUSER DTV-3517B:

The DTV-3517B supports 2S/S2 tuner input; 10MHz input/loop out; and 1PPS input/loop out. It also supports DVB-(T) RF out in one device; multi-booting; and IP (1MPTS over UDP) mirror RF output.



The modulator supports MISO and SISO; with high performance output: MER>43dB; shoulder level>56dB. It features a constant temperature crystal oscillator with up to 0.1ppm stability and supports LCD display and keyboard.



FMUSER DTV-3517:

FMSUER DTV-3517 has 4 ASI input ports and 1 IP input over UDP protocol. It also has 10MHz input/loop out and 1PPS input/loop out. The modulator supports DVB-(T) RF out in one device and single PLP. It also supports MISO and SISO; as well as MFN net mode. The modulator supports non-linear and linear digital pre-distortion (DPD) and features a constant temperature crystal oscillator with up to 0.1ppm stability.



In addition; the modulator supports PID bypass and passthrough; with keyboard operation and LCD display. It can also be upgraded and controlled through a web-based network management system; making it ideal for setting up a digital broadcasting network and providing good signals for scientific laboratory and DVB-(T) STB.



Overall; the DTV-3517/B DVB-(T) modulator is a reliable and efficient solution for converting signals into DVB-(T) RF output. Its advanced features and ease of use make it an excellent choice for broadcasting and other related applications.





Principle Chart:



FMUSER DTV-3517B



FMUSER DTV-3517




Specification:

FMUSER DTV-3517B

Input	2*S/S2 Tuner input
	10MHz reference clock input and loop out; BNC interface
	1PPS input and loop out; BNC interface
	1 RF input for DPD -25dbm~+5dbm
Modulator	DVB-T	Standard	EN300 744
		FFT	2K; 8K
		Bandwidth	5M; 6M; 7M; 8M
		Constellation	QPSK; 16QAM; 64QAM
		Guard interval	1/4; 1/8; 1/16; 1/32
		FEC	1/2; 2/3; 3/4; 5/6; 7/8
		Net Mode	SFN/MFN
		Hierarchical modulation	Alpha=1; 2; 4
RF Out	Connector	N Type; 50ΩImpedance
	RF range	30~960Mhz; 1hz stepping
	Output level ATT	-25~+3 dBm; 0.1db stepping
	MER	> 43db
	Shoulder Level	>56dB



FMUSER DTV-3517

Input	TS input over 4 ASI and 1 IP port (UDP)
	10MHz reference clock input and loop out; BNC interface
	1PPS input and loop out; BNC interface
Multipl exing	Maximum PID Remapping	128 input per channel
	Function	PID remapping (automatically or manually)
		Accurate PCR adjusting
		Generate PSI/SI table automatically
Modulation	DVB-T	Standard	EN300 744
		FFT	2K; 8K
		Bandwidth	5MHz; 6MHz; 7MHz; 8MHz
		Constellation	QPSK; 16QAM; 64QAM
		Guard interval	1/4; 1/8; 1/16; 1/32
		FEC	1/2; 2/3; 3/4; 5/6; 7/8
		Net Mode	MFN
RF Out	Connector	N Type; 50Ω Impedance
	RF range	30~999Mhz; 1hz stepping
	Output level ATT	-25~+3 dBm; 0.1db stepping
	MER	> 43db
	Shoulder Level	>56dB
System	LCD display; keyboard and web Network management
	Supporting software upgrading through network
General	Demission (W*L*H)	482mm×410mm×44mm
	Temperature	0~45℃(operation); -20~80℃(storage)
	Power supply	AC 220V±10%; 50/60Hz
