Highlights:
1.2/4/8 Tuner (DVB-C/T/ISDB-T switchable or DVB-S/S2/S2X or ATSC optional) inputs for each demodulation module
2.1 ASI & 16 IP (UDP/RTP) inputs for re-mux, IP (1 MPTS & 16 SPTS) over UDP and RTP output; ASI out for MPTS
3.Support maximum 256 PID mapping
4.Support BISS descrambling
5.Remote control and Firmware, web NMS management

Details:

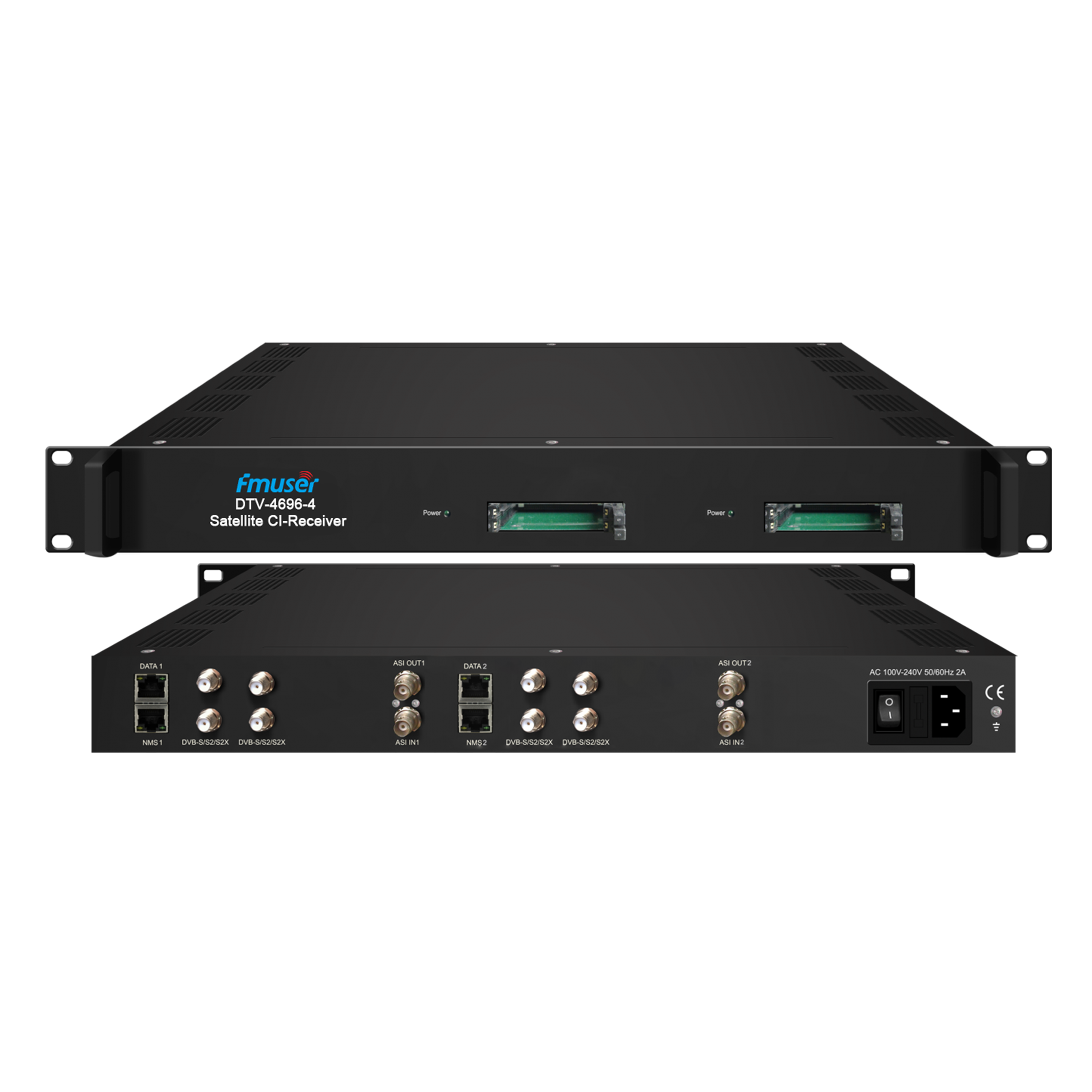

FMUSER DTV-4696 2/4/8 CI Slots and 2/4/8 DVB-C/T/ISDB-T/DVB-S/S2/S2X/ATSC or 1/2 ASI and 16 IP(UDP/RTP) in 1 MPTS and 16 SPTS or 1/2 ASI out Satellite Receiver







Overview:



The FMUSER DTV-4696 Multi-Channel CI Slots Receiver is a state-of-the-art device that combines demodulation and de-scrambling functions into a single unit. This innovative device is designed to convert RF signals into TS output after re-muxing. It is a 1-U case that supports up to 2 demodulation modules; with each module accommodating 2/4 CAMs/CIs to decrypt programs from encrypted RF; ASI; and IP inputs. The device also features BISS function to descramble programs from any input. Also suitable Cable digital TV adjacent frequency front-end system; hotel IPTV network TV system and hotel satellite digital TV system.



Features:



Input and Output Ports: FMUSER DTV-4696 is equipped with 2 or 4 tuner inputs (DVB-C/T/T2/ISDB-T switchable or DVB-S/S2/S2X or ATSC optional) for each demodulation module. Each module also has 1 ASI in and 16 IP inputs for re-muxing. This feature-rich device outputs 1 MPTS and 16 SPTS with 1 ASI out port and 1 data port; transmitting IP (1 MPTS & 16 SPTS) over UDP and RTP protocols. The device also has a maximum of 256 PID mapping; offering advanced customization options.1 ASI & 16 IP (UDP/RTP) inputs for re-mux



Advanced Features: The FMUSER DTV-4696 supports remote control and firmware; web NMS management; making it easy to manage and configure the device remotely. The device can also be updated via web; ensuring that it remains up-to-date with the latest features and functionality.Cost-Effective Solution: The FMUSER DTV-4696 Multi-Channel CI Receiver offers outstanding quality at a breakthrough price point. The device is designed to be cost-effective; making it an excellent choice for customers who want high-quality output signals without breaking the bank.



FMUSER DTV-4696 Multi-Channel CI Receiver supports a maximum of 256 PID mapping; which provides advanced customization options for users. This feature allows users to map specific PID values to different programs; ensuring that the output signals are tailored to their specific needs. With a maximum of 256 PID mapping; users can create customized output signals that are optimized for their broadcasting applications. This feature-rich device offers outstanding quality at a breakthrough price point; making it an excellent choice for customers who want high-quality output signals without breaking the bank.



Principle Chart (each demodulation module):





Technical Specifications:



Input (perdemodulation module)	2 or 4* tuner inputs (DVB-C/T/T2/ISDB-T switchable or DVB-S/S2/S2X or ATSC optional); F type 1*ASI input for re-mux; BNC interface 16*IP input for re-mux (UDP/RTP)
Tuner Section	Multi-mode tuners switchable	DVB-C	Input Frequency			60 ~890 MHz
			Standard			J.83A; J.83C	J.83B
			Constellation			16/32/64/128/256 QAM	64/256 QAM
		DVB-T/T2	Input Frequency			60 ~890 MHz
			Bandwidth			6/7/8 M
		ISDB-T	Input Frequency			60 ~890 MHz
	Satellite	DVB-S	Input Frequency			950~2150MHz
			Symbol rate			0.5~45Msps
			Signal Strength			- 65- -25dBm
			FEC			1/2; 2/3; 3/4; 5/6; 7/8
			Constellation			QPSK
			Max input bitrate			≤170 Mbps
		DVB-S2	Input Frequency			950~2150MHz
			Symbol rate			QPSK/8PSK /16APSK :0.5~45 Msps 32APSK: 0.5~40Msps;
			FEC			QPSK: 1/2; 3/5; 2/3; 3/4; 4/5; 5/6; 8/9; 9/10                                            8PSK: 3/5; 2/3; 3/4; 5/6; 8/9; 9/10                                             16APSK: 2/3; 3/4; 4/5; 5/6; 8/9; 9/10                                           32APSK: 3/4; 4/5; 5/6; 8/9; 9/10
			Constellation			QPSK; 8PSK; 16APSK; 32APSK
			Max input bitrate			≤170 Mbps
		DVB-S2X	Input Frequency			950~2150MHz
			Symbol rate			QPSK/8PSK /16APSK :0.5~45 Msps 8APSK: 0.5~40Msps 32APSK: 0.5~40Msps
			FEC			QPSK: 1/2; 3/5; 2/3; 3/4; 4/5; 5/6; 8/9; 9/10; 13/45; 9/20; 11/20 8PSK: 3/5; 2/3; 3/4; 5/6; 8/9; 9/10 8APSK: 5/9-L; 26/45-L 16APSK: 2/3; 3/4; 4/5; 5/6; 8/9; 9/10; 1/2-L; 8/15-L; 5/9-L; 26/45; 3/5; 3/5-L; 28/45; 23/36 ; 2/3-L; 25/36; 13/18; 7/9; 77/90 32APSK: 3/4; 4/5; 5/6; 8/9; 2/3-L; 32/45; 11/15; 7/9
			Constellation			QPSK; 8PSK; 8APSK; 16APSK; 32APSK
			Max input bitrate			≤170 Mbps
	ATSC	ATSC	Input Frequency			54-858MHz
			Bandwidth			6 M
			Constellation			8 VSB
Descrambling		CAM/CI Quantity			2 (per demodulation module)
		BISS Mode			Mode 1; Mode E
Output (perdemodulation module)		1*MPTS & 16*SPTS over UDP; RTP. 1000 Base-T Ethernet interface (unicast / multicast)
		1×ASI mirrored out of MPTS; BNC interface
System		Remote management		Web-server Management
		Language		English
		Upgrade		web management
Miscellaneous		Dimension		482*300*44mm (W×L×H)
		Environment		0~45℃(work);-20~80℃(Storage)
		Power requirements		100~240VAC; 50/60Hz
		Power consumption		15W



Equipment guide:

When placing an order; please specify both the Demodulation module and Tuner Input options.

Each Demodulation Module = 2 or 4 *RF/Loop out + 2*CAM + 2*Smartcard

Demodulation Module	Option 1	1*Demodulation module; 2 CAM/CI Slots
	Option 2	2*Demodulation modules; 4 CAM/CI Slots

Tuner Input  (perdemodulation module)	Option 1	2*DVB-S/S2/S2X tuner
	Option 2	2*DVB-C/T/T2/ISDB-T tuner
	Option 3	2*ATSC tuner
	Option 4	4*DVB-S/S2/S2X tuner
	Option 5	4*DVB-C/T/T2/ISDB-T tuner
	Option 6	4*ATSC tuner
	Option 7	2*DVB-S/S2/S2X tuner + 2*DVB-C/T/T2/ISDB-T tuner
	Option 8	2*DVB-S/S2/S2X tuner + 2* ATSC tuner
	Option 9	2*DVB-C/T/T2/ISDB-T tuner + 2*ATSC tuner
