30T 4"

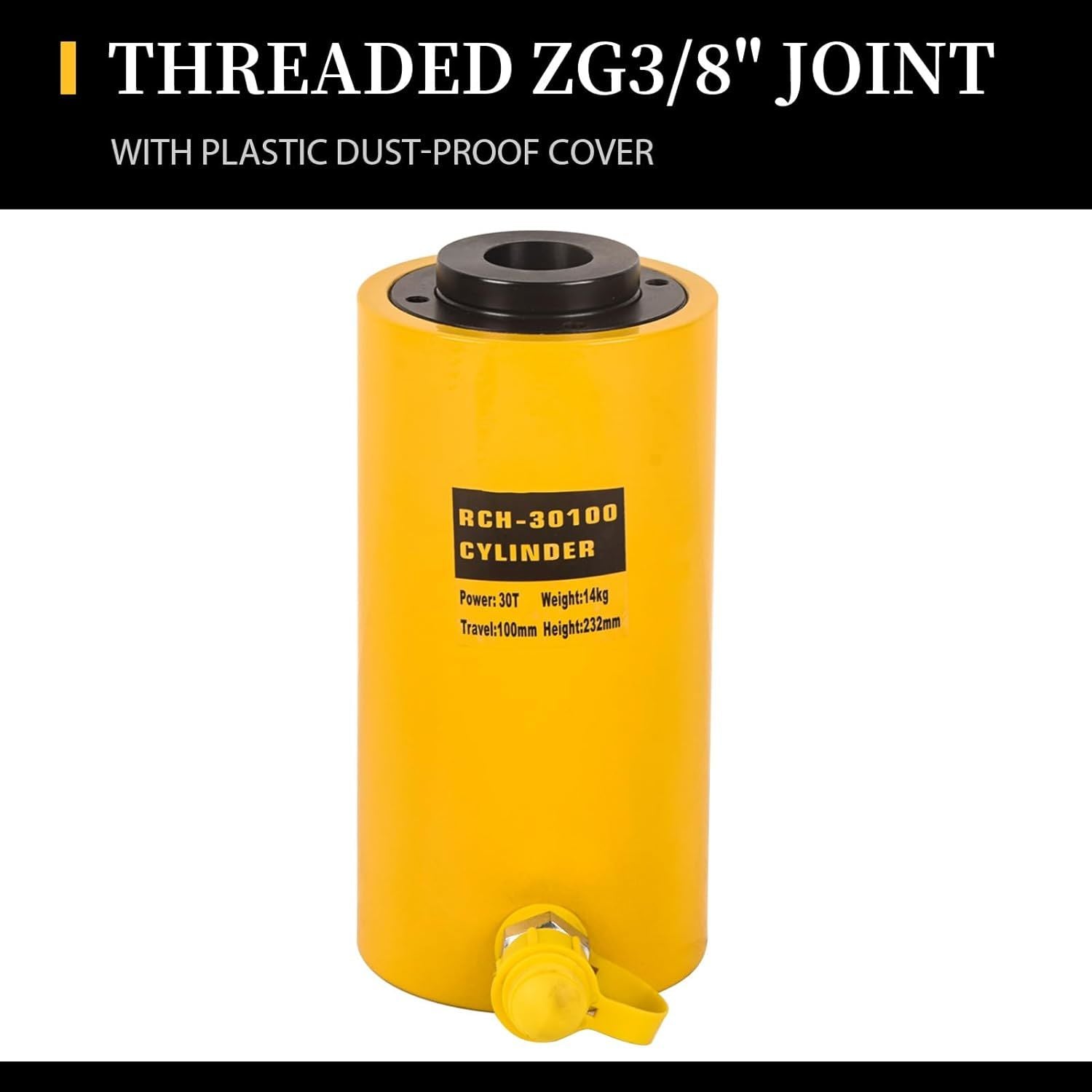

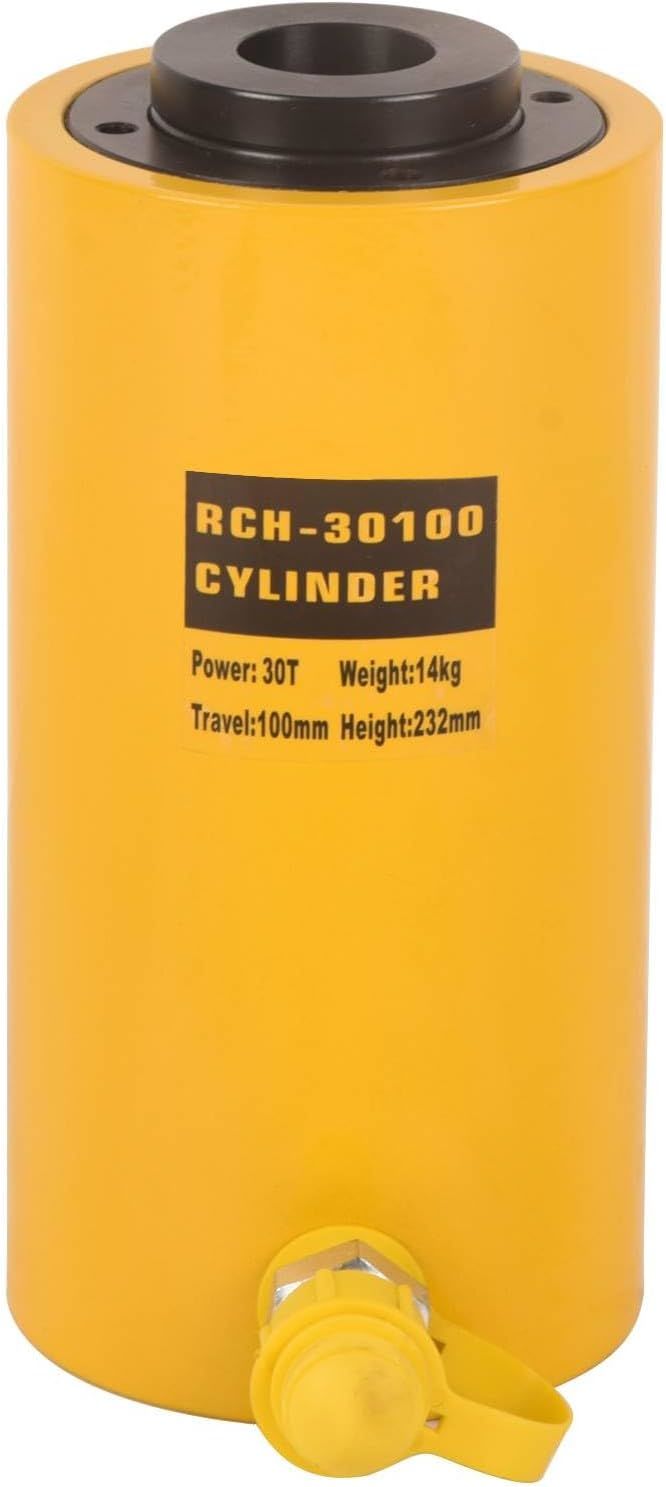

[ ][Model]: RCH-30100; [Capacity]: 30T/66138LBS; [Total Storke]: 100mm/4inch; [Outside Diameter]: 114mm / 4.49inch; [Center Core Diameter]: 33.3mm / 1.31inch;

[ ]Easy to use, the hydraulic ram cylinder jack can retract automatically after releasing the oil return value of the hydraulic pump without any blockages.

[ ]Compared to ordinary hydraulic jacks, hollow jacks offer improved pressure retention and greater stability.With its dual shafts, one for pushing and the other for lifting, the hollow jack requires minimal effort to operate effectively.That is, it can be used for pulling or pushing.

[ & - ]Baked enameled surface for greater corrosion resistance,the hydraulic ram cylinder features a smooth surface with circle texture, provide reliable support during working.This hydraulic jack cylinder has 3/8" NPT quick hydraulic coupler with dust cap.

[ ]This jack provides flexibility in usage, with unlimited directionality and the ability to adjust the angle to match the specific lifting environment, it is equally effective for horizontal or vertical lifting.This hydraulic jack cylinder has the advantages of small size, suitable for narrow space position. A great helper for riggers, fabricators, welders, automotive body and frame shops in electric power, chemical industry, steel, Bridges, machinery, and other industries.

lt is easy to carry there are two holes on the surface of the oil vat for stability.

Plunger eiper reduces contamihation.Exteding cylinder life.

Light weingt,low profile design for use in confined spaces.

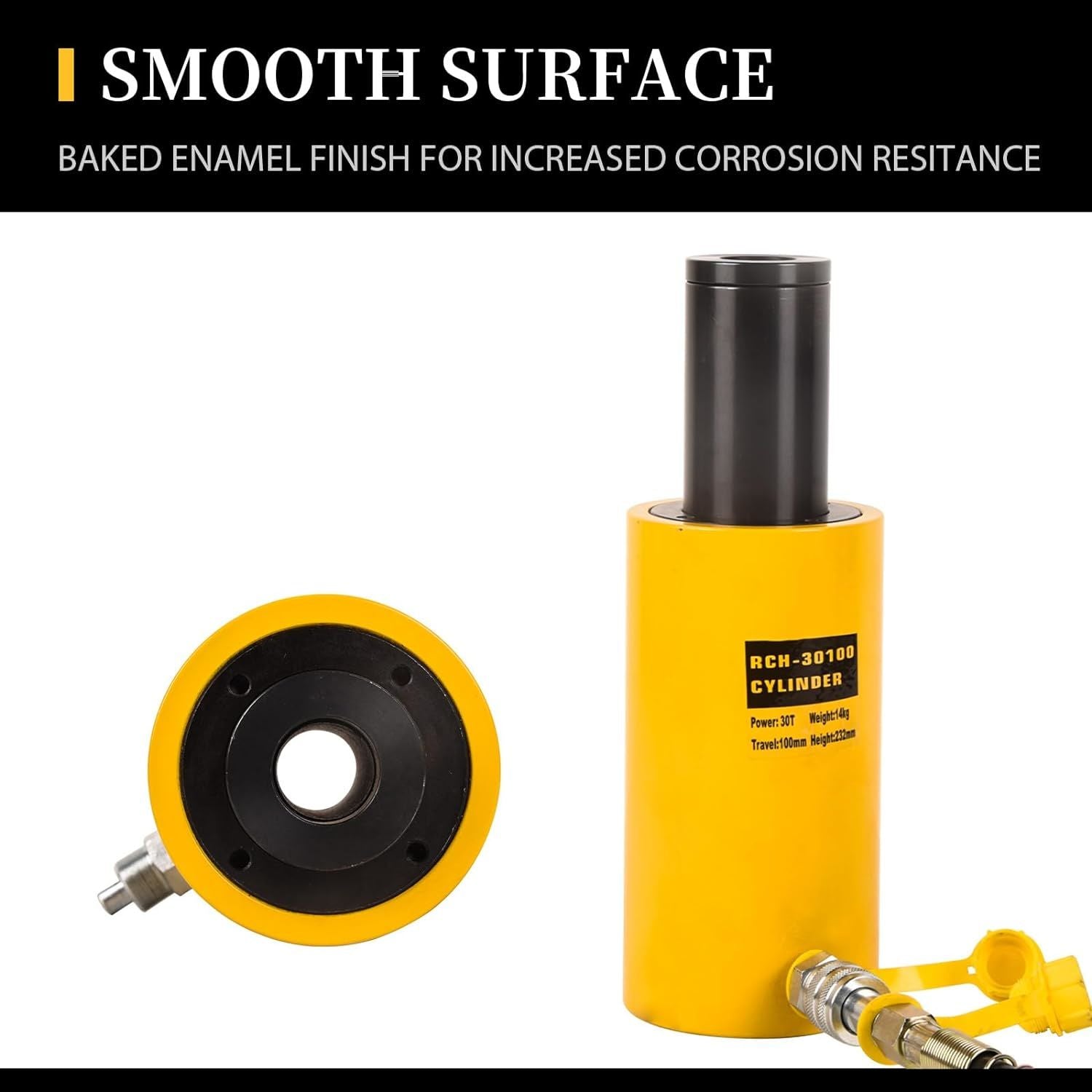

Baked enamel finish for increased corrosion resitance.

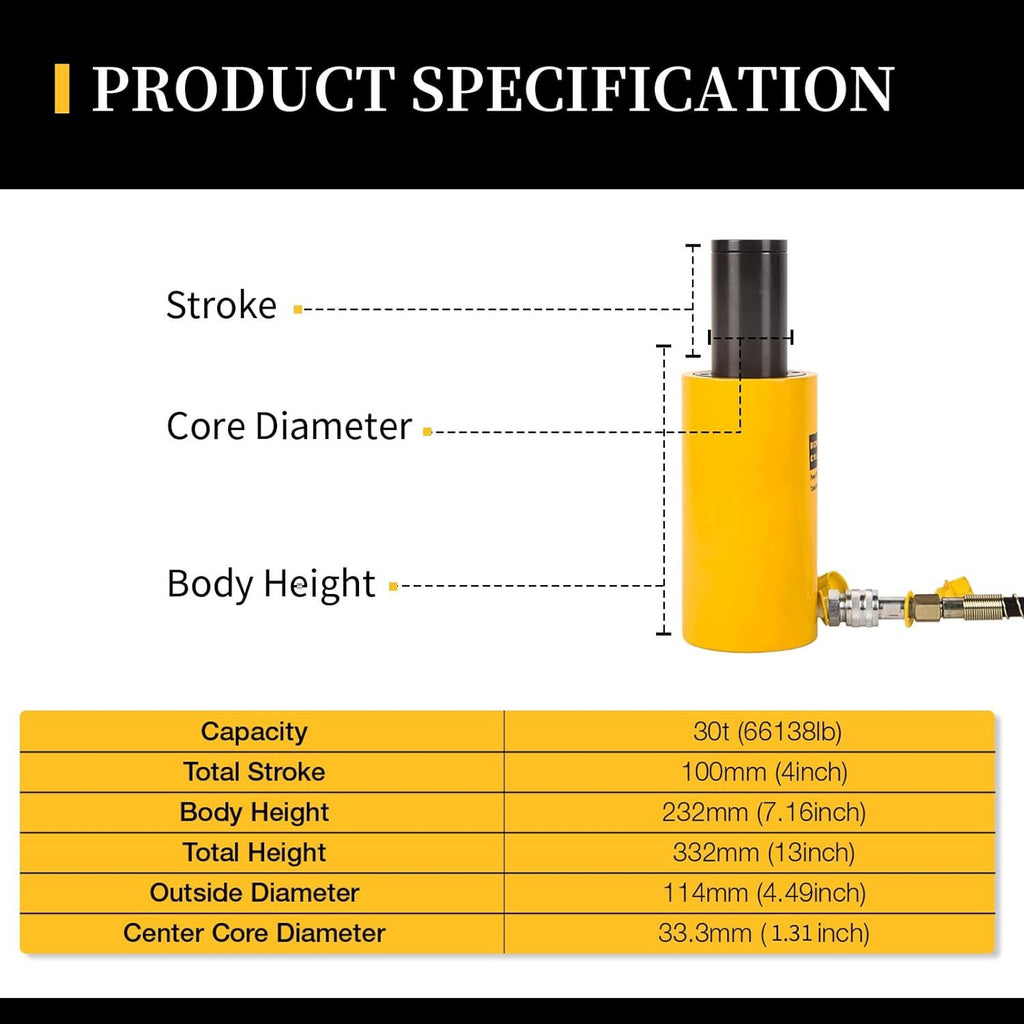

Capacity: 30T / 66138lbs

Total Storke: 100mm(4inch)

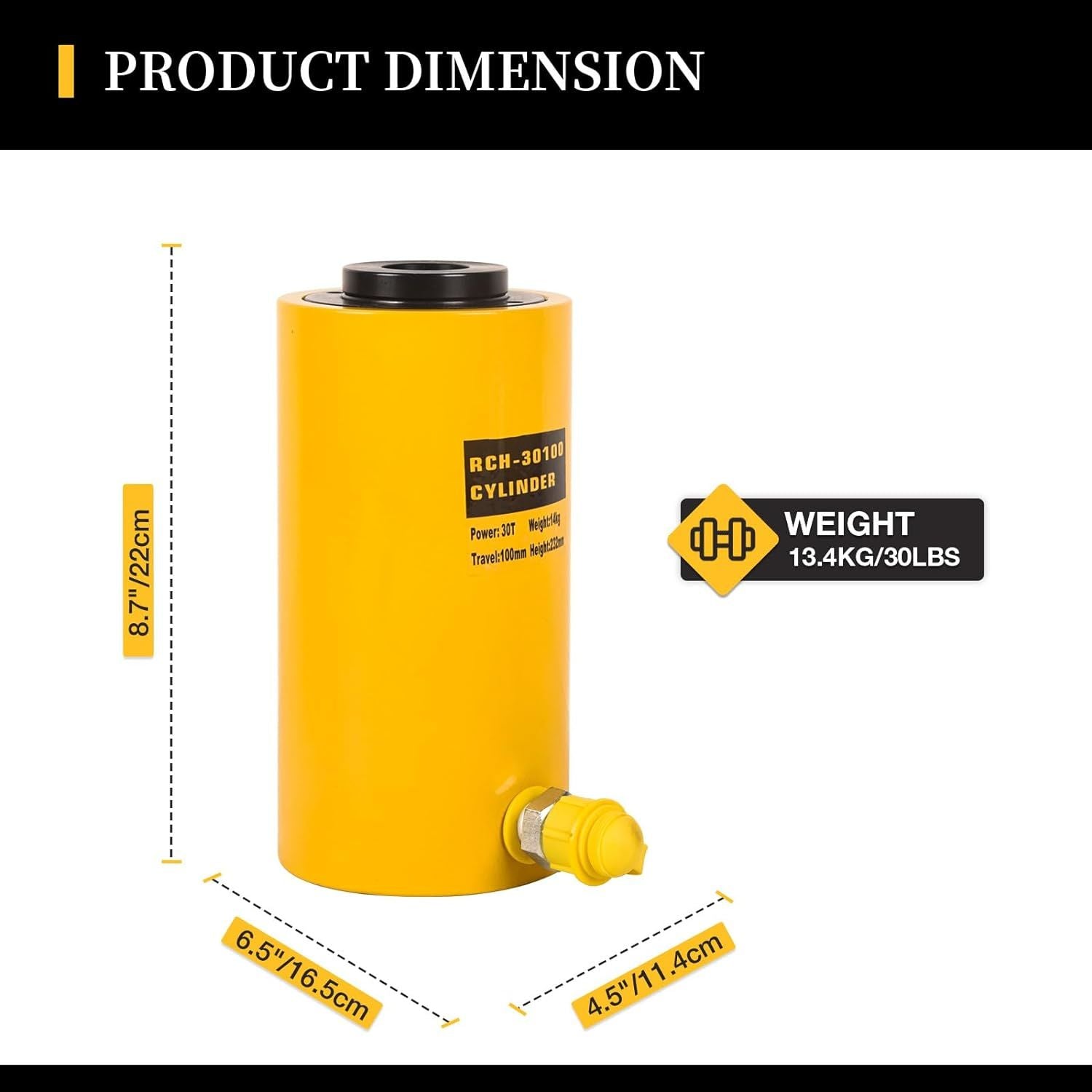

Body Height: 232mm(7.16inch)

Total Height: 332mm(13inch)

Outside Diameter: 114mm(4.49inch)

Center Core Diameter: 33.3mm(1.31inch)

Oil Storage:462cm³

Ram Diameter: 64mm(2.52inch)

Package Dimension: 10.6 x 6.7 x 6.5 inch / 27 x 17 x 16.5 cm

Package Weight: 14 kg / 31 lbs

1 x Hydraulic Cylinder Jack

1 x Seal Ring

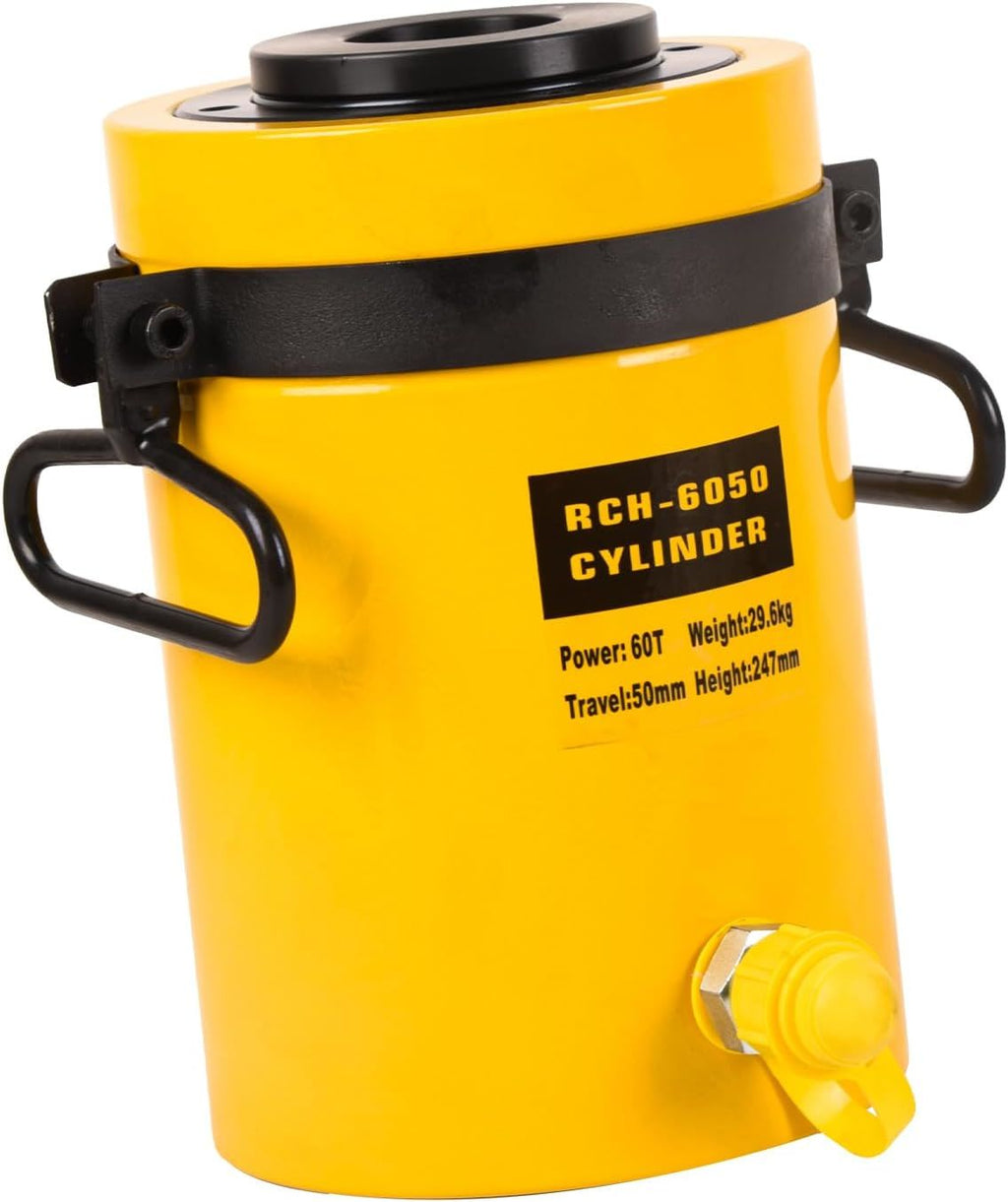

60T 2"

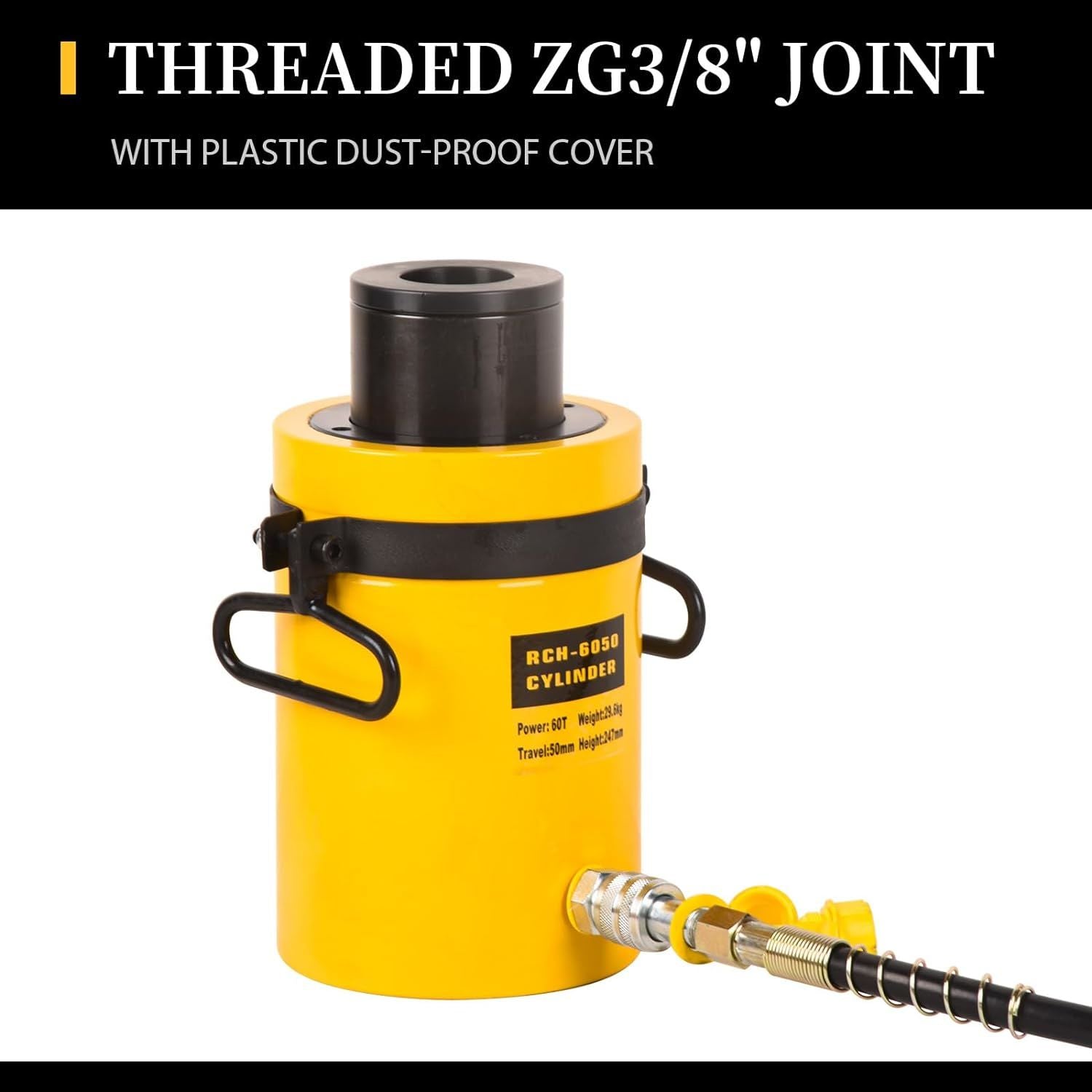

[ ][Model]: RCH-6050; [Capacity]: 60T/132277LBS; [Total Storke]: 50mm/2inch; [Outside Diameter]: 159mm / 6.26inch; [Center Core Diameter]: 53.8mm/2.11nch;

[ ]Easy to use, the hydraulic ram cylinder jack can retract automatically after releasing the oil return value of the hydraulic pump without any blockages.

[ ]Compared to ordinary hydraulic jacks, hollow jacks offer improved pressure retention and greater stability.With its dual shafts, one for pushing and the other for lifting, the hollow jack requires minimal effort to operate effectively.That is, it can be used for pulling or pushing.

[ & - ]Baked enameled surface for greater corrosion resistance,the hydraulic ram cylinder features a smooth surface with circle texture, provide reliable support during working.This hydraulic jack cylinder has 3/8" NPT quick hydraulic coupler with dust cap.

[ ]This jack provides flexibility in usage, with unlimited directionality and the ability to adjust the angle to match the specific lifting environment, it is equally effective for horizontal or vertical lifting.This hydraulic jack cylinder has the advantages of small size, suitable for narrow space position. A great helper for riggers, fabricators, welders, automotive body and frame shops in electric power, chemical industry, steel, Bridges, machinery, and other industries.

Specifications:

lt is easy to carry there are two holes on the surface of the oil vat for stability.

Plunger eiper reduces contamihation.Exteding cylinder life.

Light weingt,low profile design for use in confined spaces.

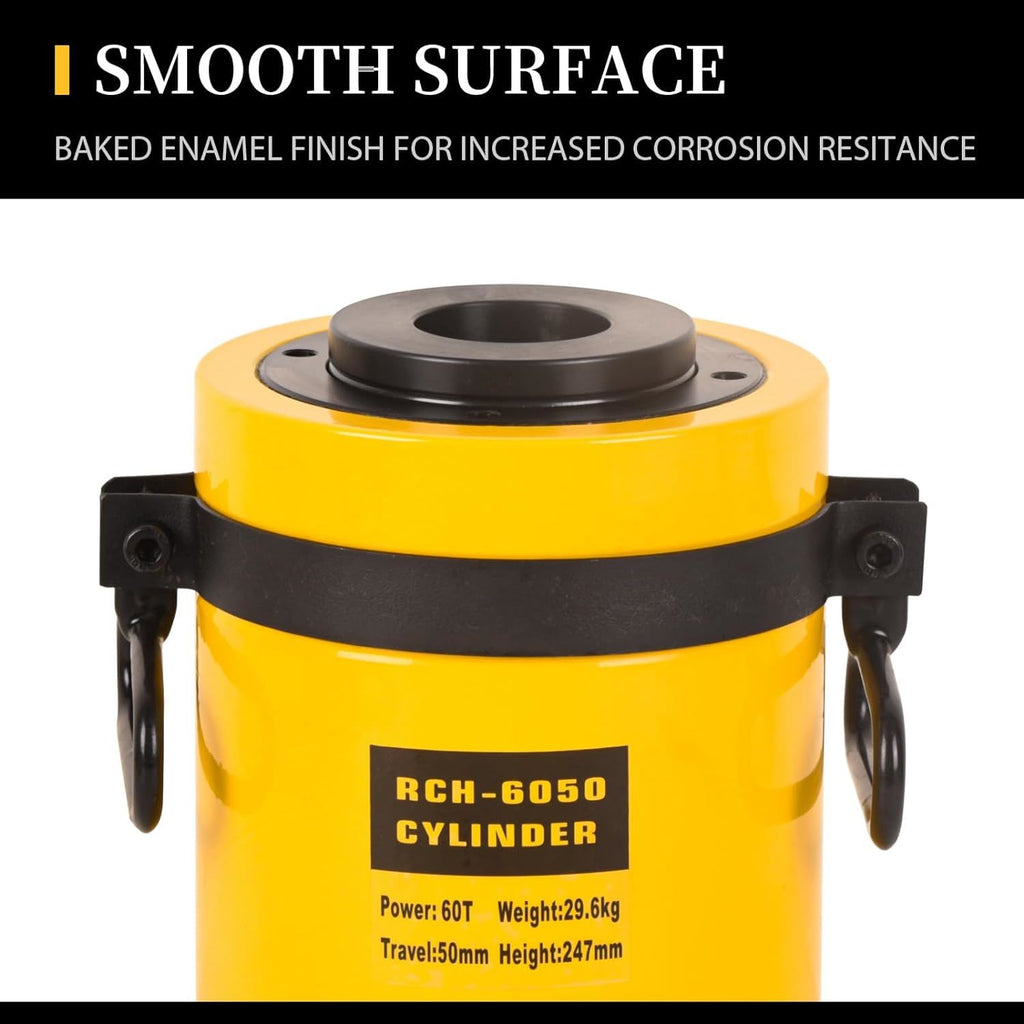

Baked enamel finish for increased corrosion resitance.

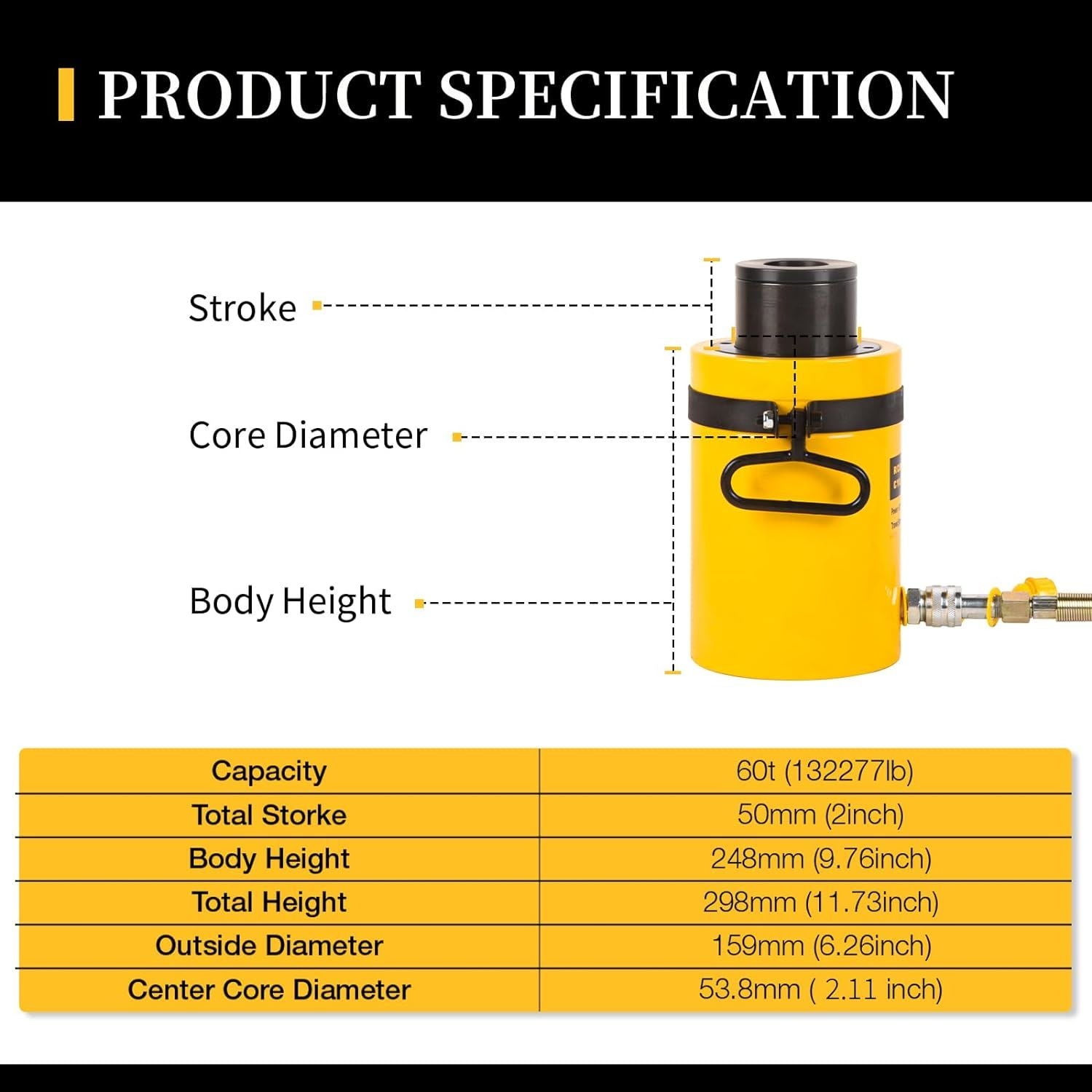

Capacity: 60T / 132277lbs

Total Storke: 50mm(2inch)

Body Height: 248mm(9.76inch)

Total Height: 298mm(11.73inch)

Outside Diameter: 159mm(6.26inch)

Center Core Diameter: 53.8mm(2.11inch)

Oil Storage:401cm³

Ram Diameter: 92mm(3.62inch)

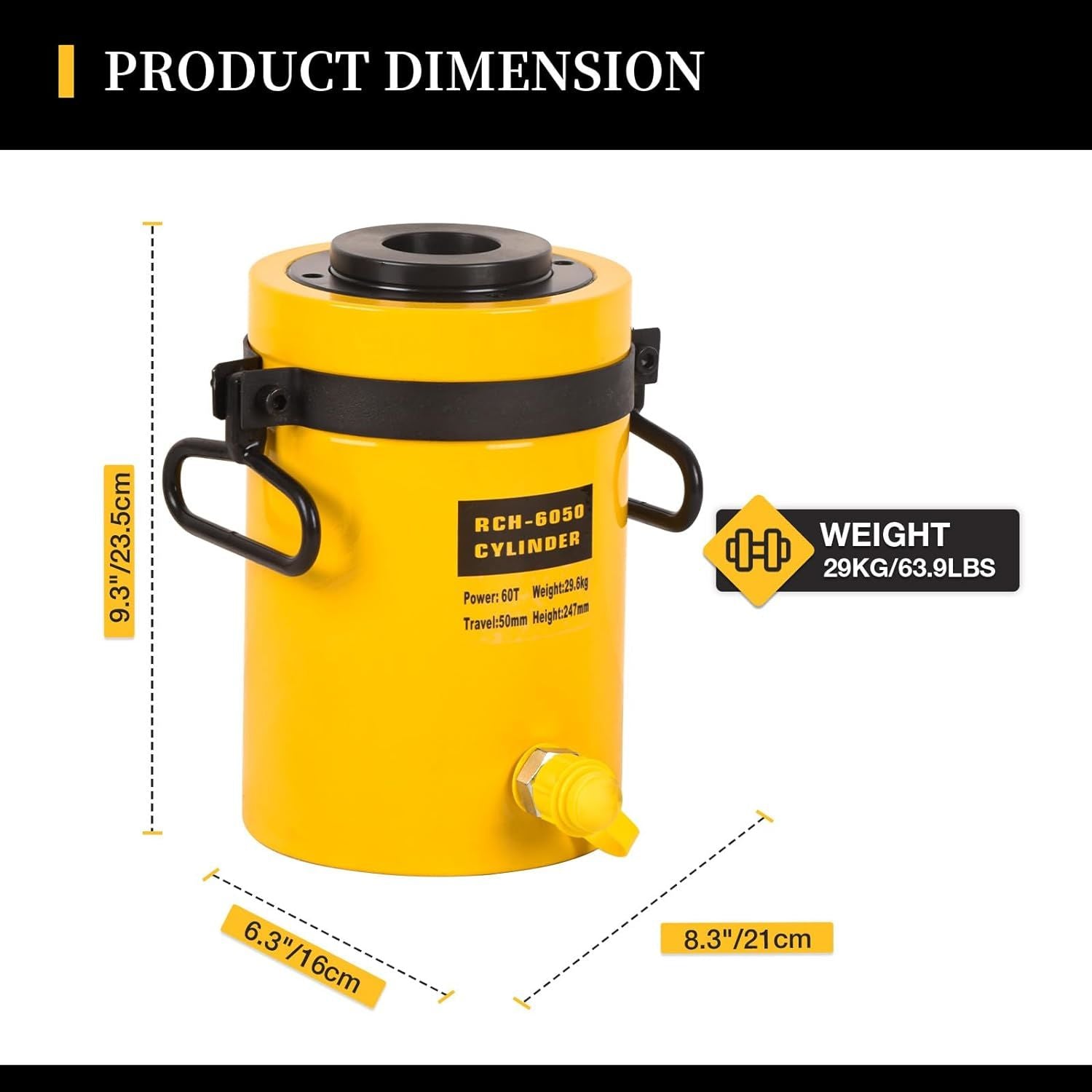

Package Dimension: 9.3 x 9.4 x 11.2 inch / 23.5 x 24 x 28.5 cm

Package Weight: 30.35 kg / 66.9 lbs

1 x Hydraulic Cylinder Jack

1 x Seal Ring

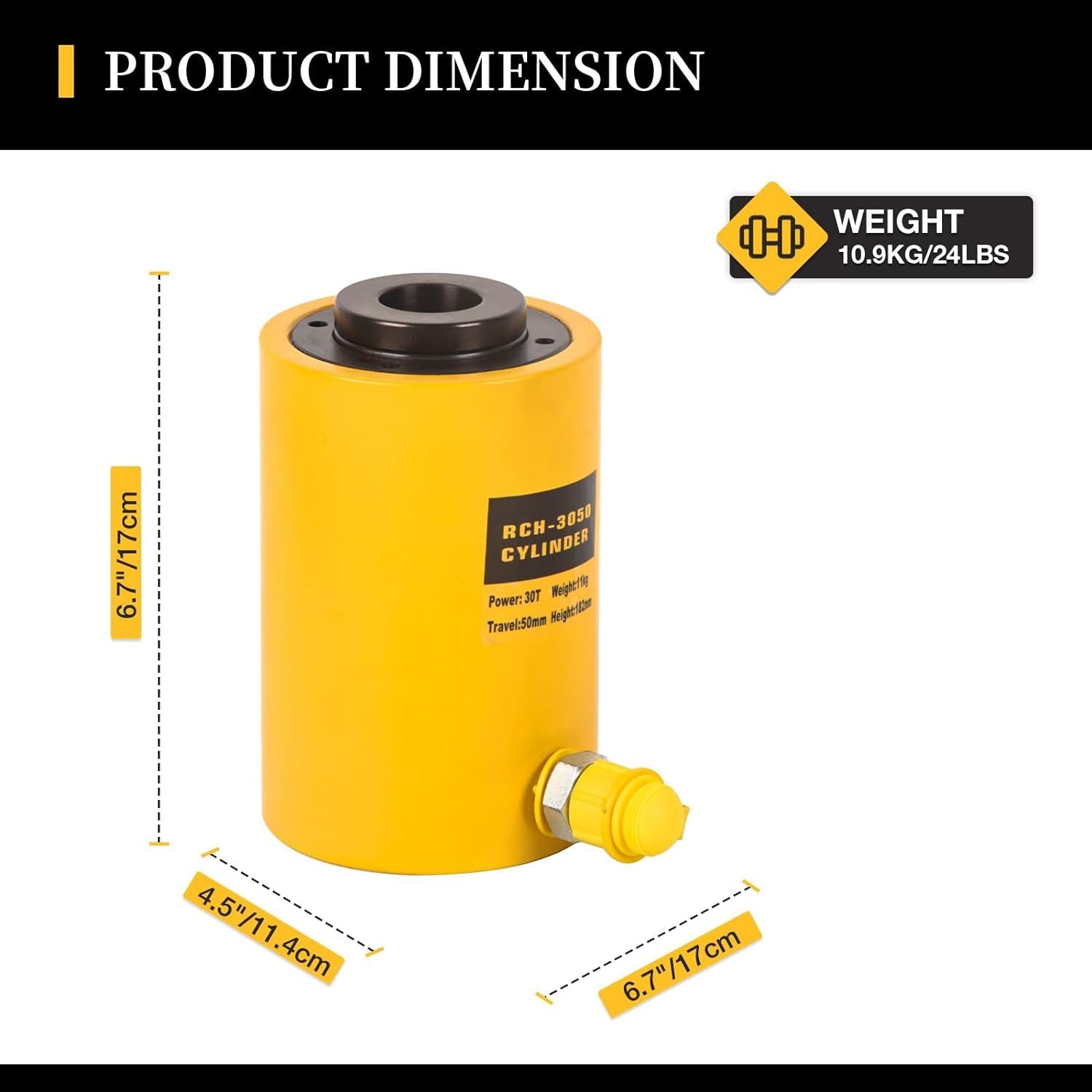

30T 2"

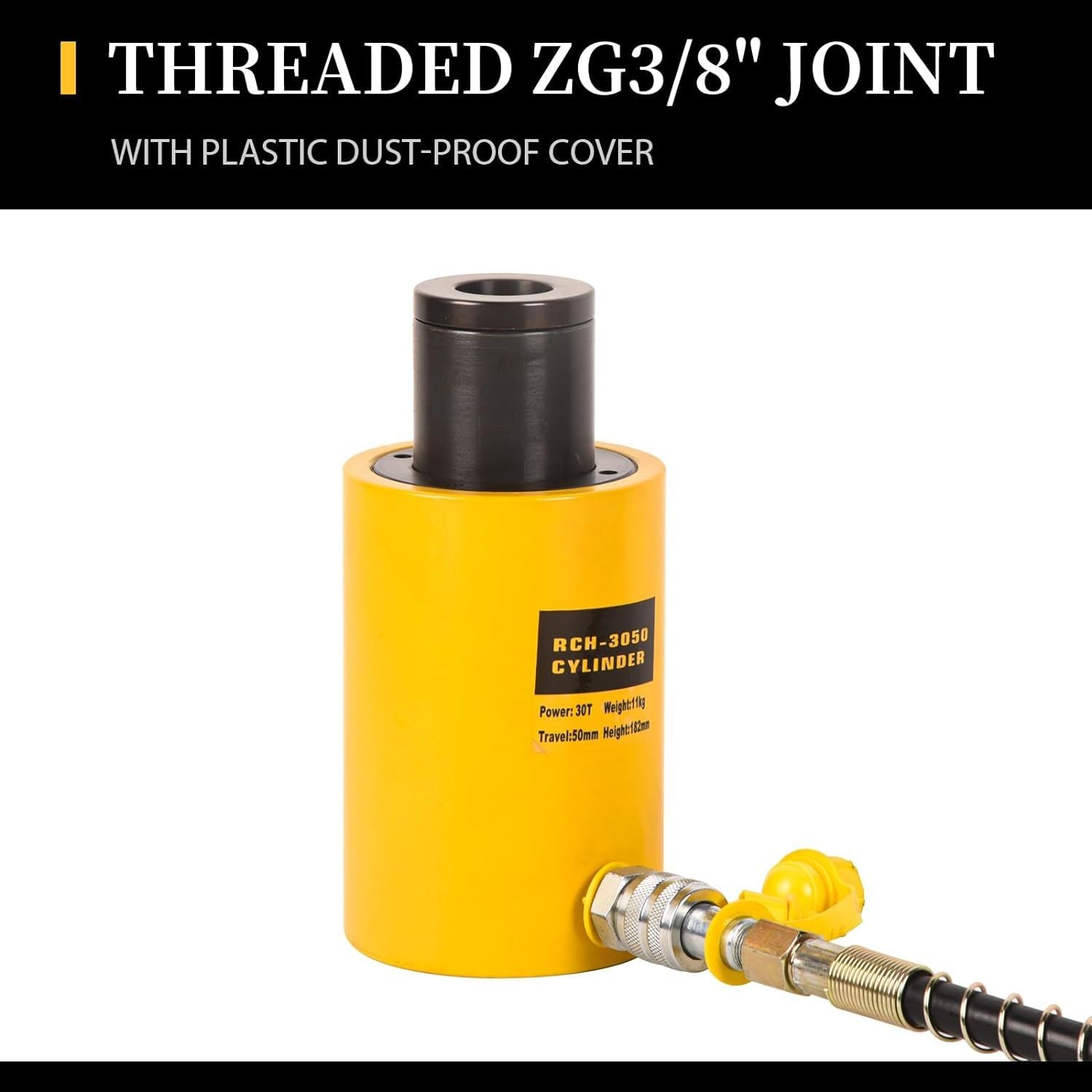

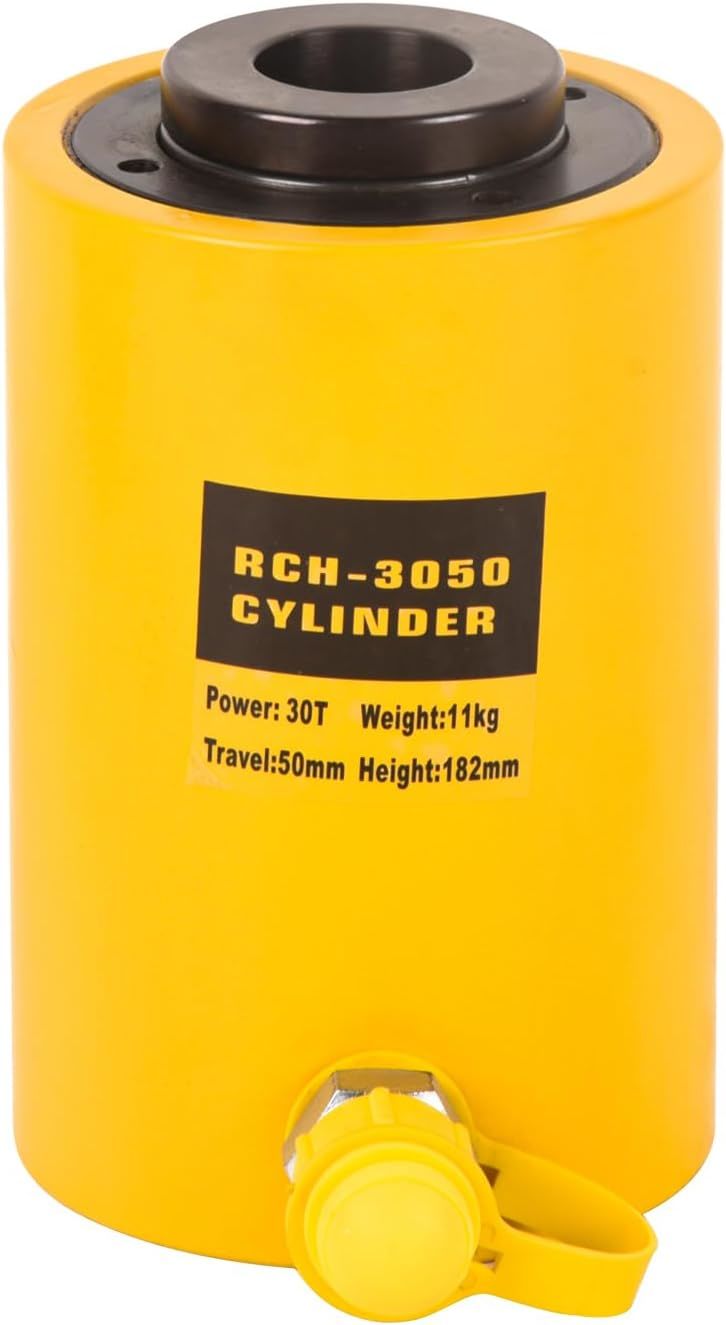

[ ][Model]: [Model]: RCH-3050; [Capacity]: 30T/66138LBS; [Total Storke]: 50mm/2inch; [Outside Diameter]: 114mm / 4.49inch; [Center Core Diameter]: 33.3mm / 1.31inch;

[ ]Easy to use, the hydraulic ram cylinder jack can retract automatically after releasing the oil return value of the hydraulic pump without any blockages.

[ ]Compared to ordinary hydraulic jacks, hollow jacks offer improved pressure retention and greater stability.With its dual shafts, one for pushing and the other for lifting, the hollow jack requires minimal effort to operate effectively.That is, it can be used for pulling or pushing.

[ & - ]Baked enameled surface for greater corrosion resistance,the hydraulic ram cylinder features a smooth surface with circle texture, provide reliable support during working.This hydraulic jack cylinder has 3/8" NPT quick hydraulic coupler with dust cap.

[ ]This jack provides flexibility in usage, with unlimited directionality and the ability to adjust the angle to match the specific lifting environment, it is equally effective for horizontal or vertical lifting.This hydraulic jack cylinder has the advantages of small size, suitable for narrow space position. A great helper for riggers, fabricators, welders, automotive body and frame shops in electric power, chemical industry, steel, Bridges, machinery, and other industries.

Specifications:

lt is easy to carry there are two holes on the surface of the oil vat for stability.

Plunger eiper reduces contamihation.Exteding cylinder life.

Light weingt,low profile design for use in confined spaces.

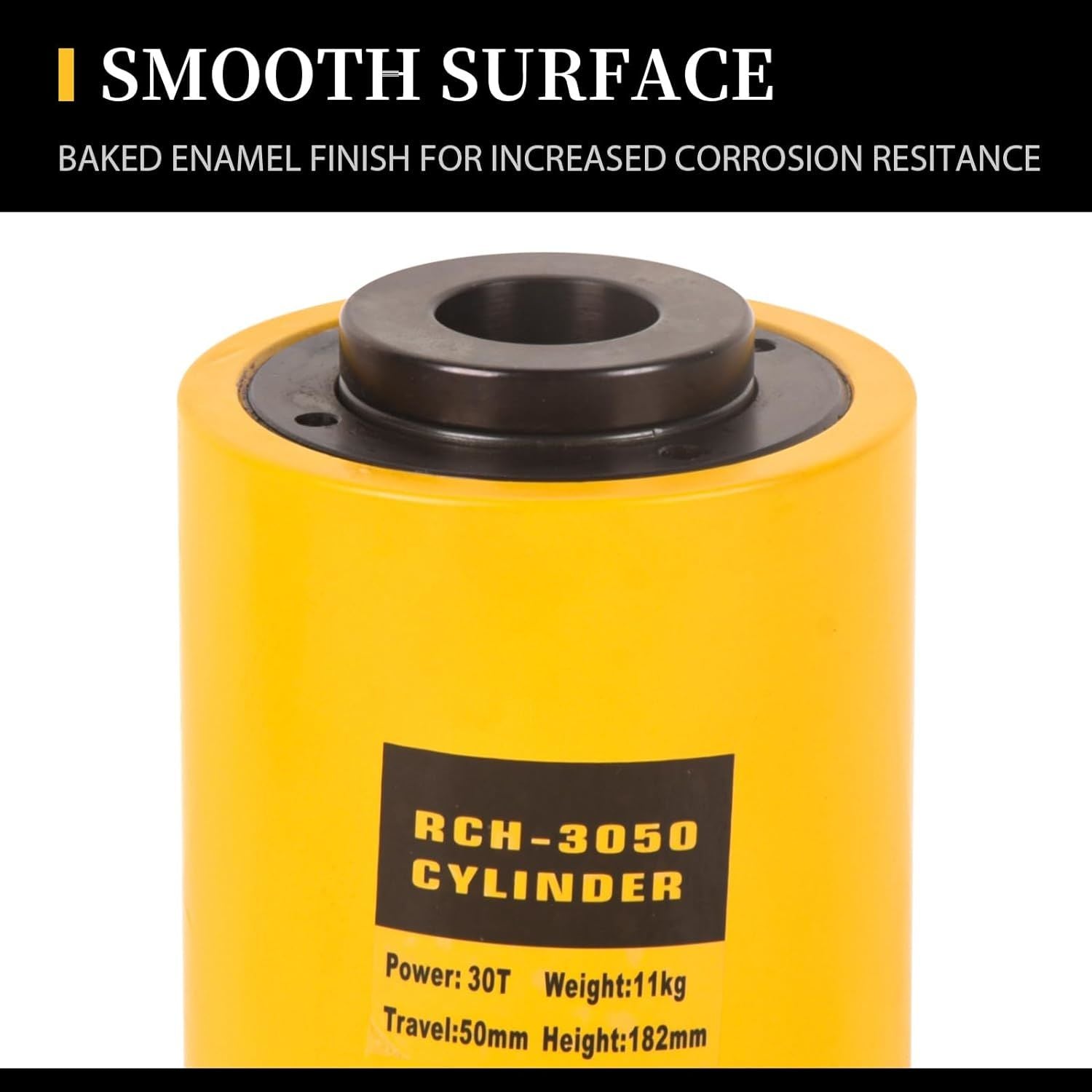

Baked enamel finish for increased corrosion resitance.

Capacity: 30T / 66138lbs

Total Storke: 50mm(2inch)

Body Height: 182mm(7.16inch)

Total Height: 232mm(9.13inch)

Outside Diameter: 114mm(4.49inch)

Center Core Diameter: 33.3mm(1.31inch)

Oil Storage:231cm³

Ram Diameter: 64mm(2.52inch)

Package Dimension: 10.6 x 6.7 x 6.5 inch / 27 x 17 x 16.5 cm

Package Weight: 14 kg / 31 lbs

1 x Hydraulic Cylinder Jack

1 x Seal Ring
