Specifications:

Relief Valve: Adjustable

Center system: Open

Spool Count: 1-Spool

Valve Operation: Manual

A, B ports: 1/2"" BSPP

P port: 1/2"" BSPP

T, N port: 3/4"" BSPP"

Gallons per minute (GPM): 21

Maximum pressure: 3600 PSI

Inlet size: SAE10

Outlet size: SAE10Port Size: SAE 10

Details

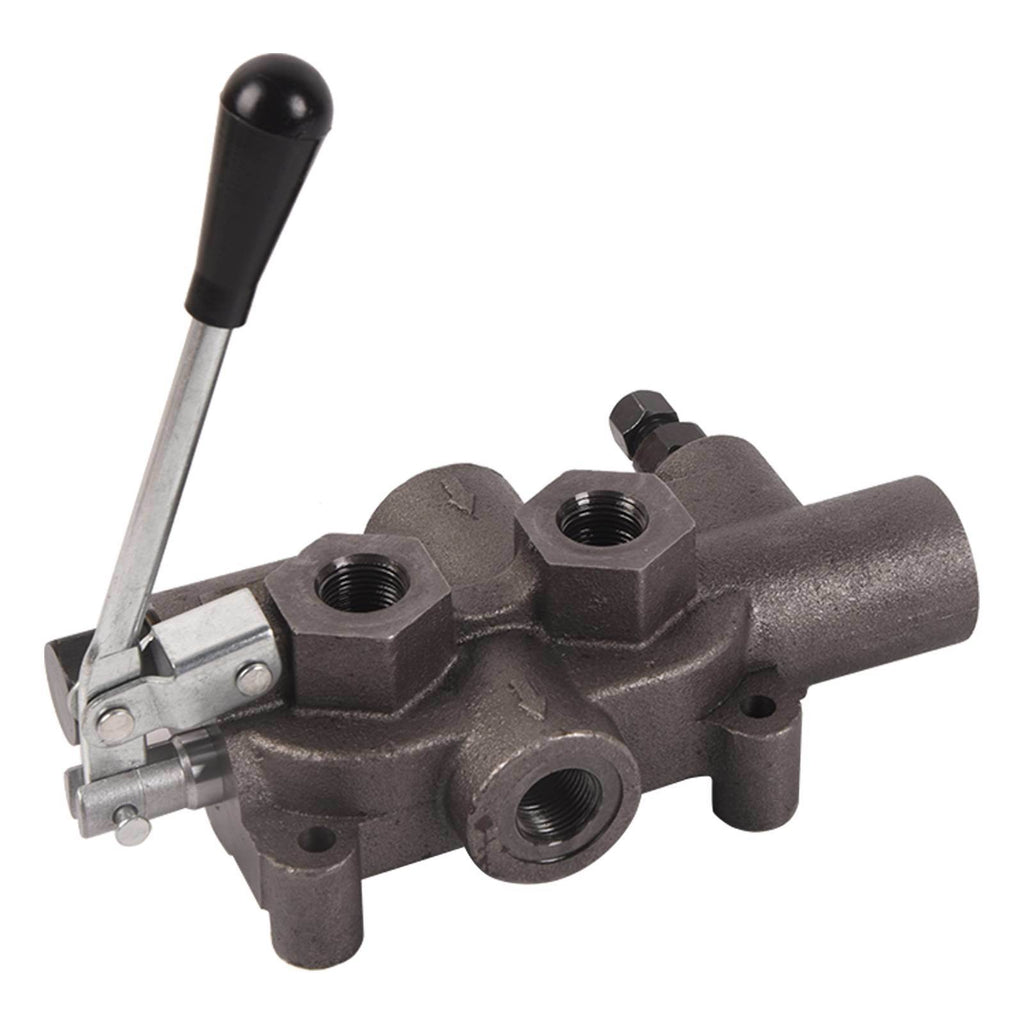

[Hydraulic 1 Spool Valve] Equipped with 1 ps spool valve. The hydraulic system has a maximum pressure of 3600 PSI and a maximum flow rate of 21 GPM. The opening and disconnection of the hydraulic oil is controlled by connecting the valve to the oil circuit.

[Material] 1 Spool hydraulic valve is made of aluminum and iron, and the solid structure can provide long-term service.

[Automatically Reset] The standard spool is spring-returned and can be reset to the neutral position. In addition, there is a spring at the bottom of the handle that makes the joystick easy to control.

[Power Output] Manual control, closed valve, through the pressure output port connected with other hydraulic components to provide power source.

[Wide Application] The compact design is suitable for the use in small tractors, tractors loaders, log splitters, environment vehicles, light loading machines, etc.

Package List:

1 x 1 Spool Hydraulic Directional Control Valve
