Description
1.Sensitivity : <5mV @ 100MHz, <5mV @ 400MHz, <15m @ 1GHz
2.Range : 50MHz - 2.6GHz
Details:

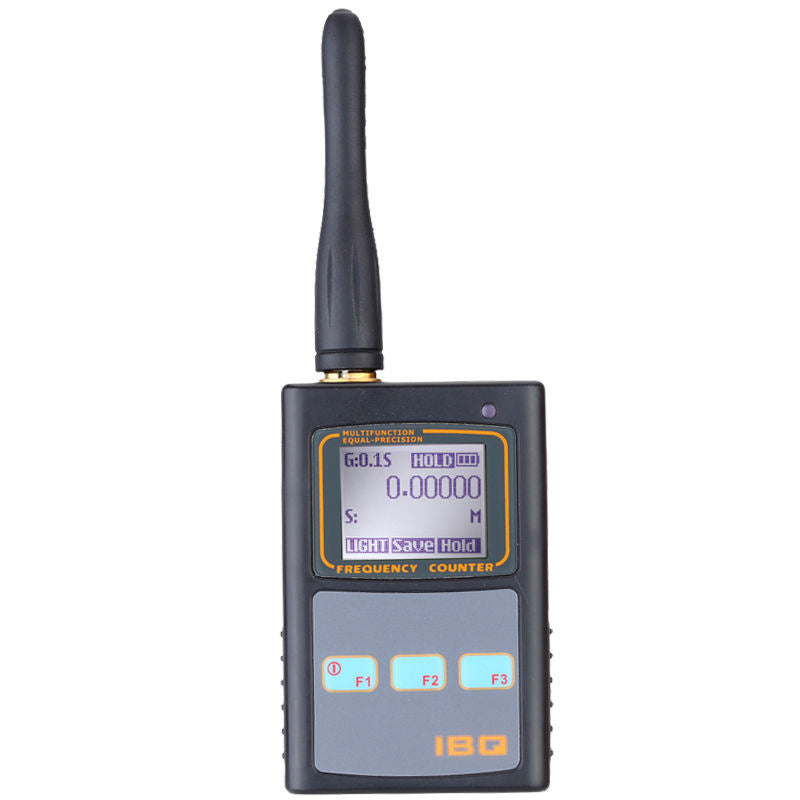

IBQ101 50MHz to 2.6GHz Portable RF Frequency Counter
IBQ 101 series hand-held frequency counter is a super compact frequency measuring instrument.
It's convenient portable and easy to use; that you can carry almost anywhere.
Features :
New and high quality
Multi-function LCD display
Analog bar and Digit Signal Strength
RF signal strength
Interactive user menu
Screen holding
Display holding
Power indicator
Have back light
Specifications :
Range : 50MHz - 2.6GHz
Amplifier : 50 ohm
Impedance : 50 ohm; VSWR<2:1
Sensitivity : <5mV @ 100MHz; <5mV @ 400MHz; <15m @ 1GHz
Gate : 0.1ms; 0.1s; 1s
Time Base : < +/-30ppm
LSD : 100Hz/1s
Digit Display : 9
Display Readings Saving : 50
Power : DC 5V 1A
Cabinet : ABS
ANT : (UHF)
Size : 3.3 x 1.0 x 0.9 in (L x W x H)
Battery : 3 x AAA Ni-MH
Shell Material : High-quality plastic
Package includes :
1 x IBQ101 Portable Frequency Counter
1 x plug Charger
1 x Antenna
1 x Power Cord
1 x English user Manual
