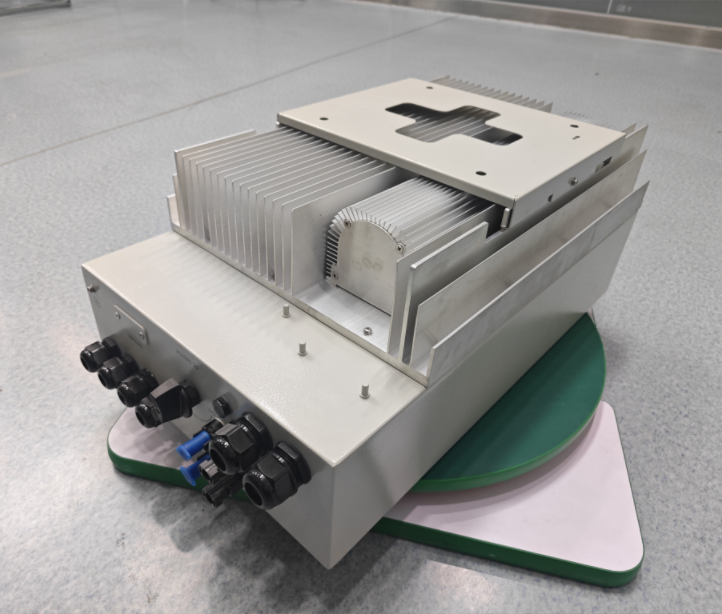

Off-grid energy storage hybrid photovoltaic inverter Wall-mounted, stacked energy storage device

Highlights:
1.100W lightweight flexible solar power module (applied to top of RV) 300W lightweight flexible solar power roof module (applied to house balcony / roof)
2.200W high-efficiency single crystal solar energy (four-fold integrated laminated band bracket) 300W high-efficiency single crystal solar energy (four-fold integrated laminated band bracket)
3.Outdoor solar energy storage device Solar energy house storage inverter
4.Photovoltaic micro-inverter Photovoltaic inverter Off-grid connection hybrid inverter
5.Wall-mounted device Portable and mobile energy storage device Stackable energy storage device

Details:

SKU: PSED5000. and from the energy storage hybrid photovoltaic inverter
Photovoltaic Input (DC)
Maximum input power: 7,000 W
Maximum input voltage: 500V
Start-up voltage: 150V
Pv input voltage range: 150V-500V
MPPT Operating voltage range: 120V-430V
MPPT side volume: 2
Maximum string number for each 0001 MPPT group: 1
Maximum input current: 15A / 15A

Output / Input (AC)
Rated output power: 5,000 W
Maximum output apparent power: 5500VA
Maximum output current: 23.9A
Rated power grid voltage: 220V / 230V / 240V
Rated power grid frequency: 50 / 60Hz self-tracking
Total current waveform distortion rate: <3%_x0001_ (rated power)
DC component: <0.5%In
Power factor range:> 0.99@ power (adjustable range 0.8 ahead ~0.8)

Off-grid output
Maximum output power: 4,500 W
Rated output voltage: 230V
Rated output frequency: 50Hz (60Hz optional)
UPS switching time: <20ms
Total harmonic distortion (linear load): <3%
Overload capacity: 110%, 30S / 120%, 10S / 150% 80ms

Battery information
Voltage range: 41.6V-58.5V
Maximum charging current: 95A (light pay and AC hybrid charging)
Maximum discharge current: 100A
Battery type: lithium battery / lead-acid battery
Communication interface: RS485 / Can

productiveness
Maximum efficiency: 98%; European efficiency: 97%; maximum discharge efficiency: 95%; MPPT rate: 99.90%
system
Protection level: IP65
Noise: <35 dB
Ambient temperature: -25℃ -60℃
Cooling mode: natural cooling
Ambient humidity: 0-95% non-condensing
Altitude level: 2000m
Power off its own power consumption: <3W
Display: LCD LCD display
Communication mode: RS485 / USB / CAN / Wifi (GPRS optional)

quality standard
IEC62109-1, IEC62109-2,EN61000-6-1,
EN61000-1-3,VDE-AR-N4105,EN50549,G99,CEI-021,AS/NZS4777.2,
RD1699(UNE_x0001_206006IN:2011/UNE 206007-1
IN:2013/UNE 217002:2020)

on-product information

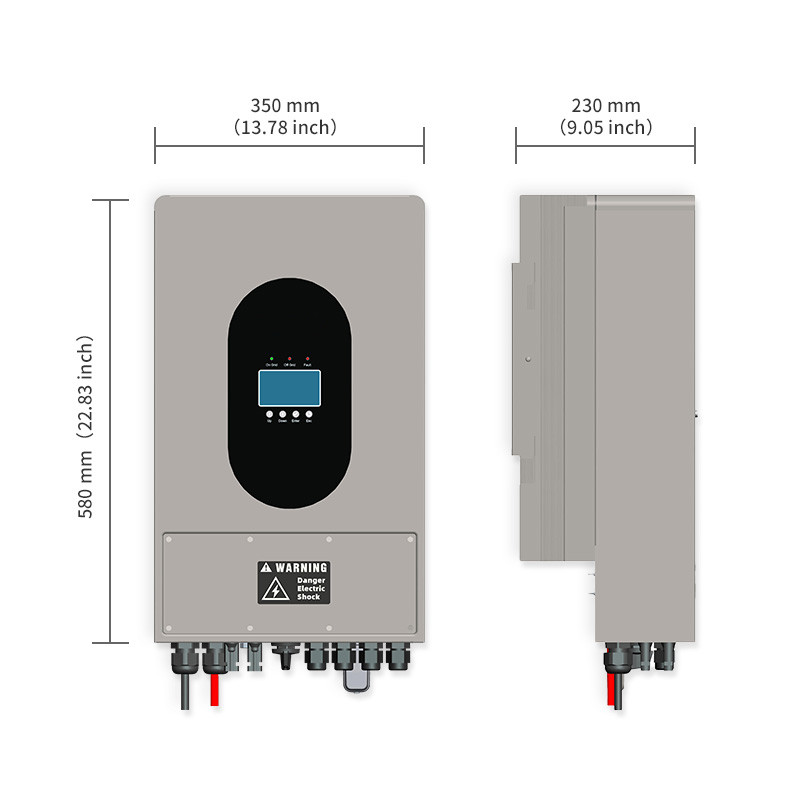

Dimensions: 580mm 350mm 230mm
Installation method: wall-mounted type
Weight: 23.5 kg

Product features:
Ssis control, up to 6 parallel
Suitable for a variety of customized photovoltaic energy storage integrated machine
Multiple modes of operation, grid-connected, off-grid and UPS, built-in MPPT controller
For all 24V and 48V lithium iron phosphate and lead-acid battery packs
Intelligent APP can remotely diagnose the number of batteries and manage them
